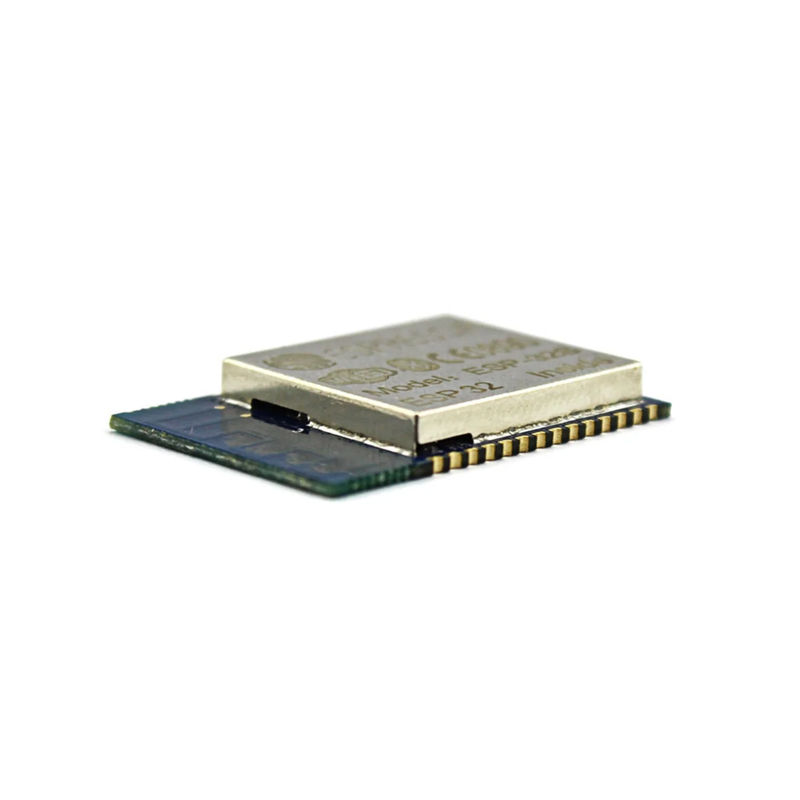

ESP32S Wifi Bluetooth Combo Module

This module ESP32S totally fits for WiFi 802.11b/g/n/e/i and Bluetooth v4.2 BR/EDR & BLE standard, providing a series of solutions of Wifi and Bluetooth to support open real-time operating systems (RTOS). ESP32S also offers an open platform to support users to custom function flexibly in various applications. Not only Integrated with abundant Analog sensing and digital interfaces, ESP32S but also integrates the complete launch/receive radio frequency functions including antenna switch, radio frequency, power amplifier, low noise amplifier, filter, power management module and advanced self calibration circuit. Specifically this module carries two 32-LX6 CPUS, whose dominant frequency is high up to 240MHz with 7-degreed pipeline architecture. And the ESP32 is capable of functioning reliably in industrial environments with an operating temperature range of -40°C to 125°C. Powered by advanced calibration circuitries, ESP32 can dynamically adjust itself to remove external circuit imperfections or adapt to changes in external conditions.The integrated adapted caching of ESP32S module is good to improve the system function and optimize the system storage. Also the flexible RAM/ROM divides the structure which only allows users to custom for their unique demands and using situations. But beneficially whether ESP32S acts as a stand-alone utility or mainframe MCU slave unit, it all shows perfect all-rounded functions. As a slave unit, ESP32S provides WiFi and WiFi-BT-BLE MCU functions through SPI/SDIO or I2C/UART interface with PCB antenna which is easy to operate, powerful and of wide applications. On the other hand, this ESP32S chip is designed for low cost ,mobile electrical devices, wearable IOT devices professionally which integrates all functions of 2.4 GHz WLAN and Bluetooth dual mode single chip scheme. Besides it adopts TSMC low-cost 40nano crafts, shares optimal power consumption performance, RF performance, stability, universality and reliability, satisfying for all kinds of applications and different demand of power consumption. As an advanced low-cost chip in the industry, ESP32S features with fine resolution clock gating, saving electricity mode and dynamic voltage regulation. For example, when it is applied to IoT sensor Hub, this ESP32S module can only be waken up periodically on certain terms. Definitely the output of radio-frequency power amplifier can also be adjusted to realize the optimal balance among correspondence distance, data efficiency and power consumption.Follows are points that this ESP32S weighs heavier than ESP8266Faster WiFi – Wifi has been upgraded to support HT40 speed (144.4 Mbps) and has a new RF architecture to simplify the application schematicsBluetooth Low Energy and ClassicDual core processor – 2x Tensilica L108 processors clocked at up to 160 MHzLow Power Mode Improvements – ADC conversions, level thresholds, etc.. can now be performed in deep sleepPeripherals – Capacitive touch, ADCs, DACs, I2C. UART, SPI, SDIO, I2S, RMII, PMW, etc… but no USB.More RAM – ~400 KB on-chip RAMSecurity – Hardware accelerated AES and SSL, and more undisclosed improvements.Simplified APIs – Not many details provided here, except WiFi APIs will be simplified, yet keep good flexibility and control.FeaturesOf Wi-Fi802.11 b/g/n/e/i802.11 n(2.4 GHz) , with speed up to 150 Mbps802.11 e: QoS to realize wireless media techniqueWMM-PS, UAPSDA-MPDU and A-MSDU Frame aggregation techniqueFragmentation and recombinationBeacon automatic monitoring/ scanning802.11 i safe features: Pre authentication and TSNSupport WPA / WPA2 / WPA2-Enterprise / WPS encryptedBasic structure network (Infrastructure BSS) Station mode/ SoftAP modeWi-Fi Direct（P2P）、P2P discover、P2P GO mode and P2P power managementUMA compatibility and certificationAntenna diversity and selectionOf BluetoothBluetooth v4.2 standard including traditional BLE (BR/EDR) and low cost BLESupport standard Class-1, Class-2 and Class-3 with no need of external power amplifierOutput efficiency is up to 10 dBmNZIF receiver shares -98 dBm BLE receiving sensibilityAFH / HID / ATT / GATTBased on SDIO / SPI / UART standard interface HCIHigh speed UART HCI which is up to 4 Mbpssupport BT 4.2 controller and host protocolService discover protocol (SDPGeneral access application (GAP)Safety management protocol (SMP)Support all low cost Bluetooth based on GATTSPP-Like low cost Bluetooth data transmission protocolBLE BeaconA2DP ／ AVRCP ／ SPP,  HSP ／ HFP,  RFCOMMCVSD and SBC Audio encoding and decoding algorithmBluetooth Piconet and ScatternetCPU and storagesupply voltage：2.2V to 3.6VXtensa® 32-bit LX6 Dual Core Processor，operational capability is high up to 600 DMIPS448 KByte ROM／520 KByte SRAM／16 KByte SRAM in RTCQSPI connects 4 Flash ／ SRAM at most，and every Flash is about 16 MBytes in largestThe clock and the timerRTC watchdog8 MHz oscillator ／RC oscillator inside and support self calibrationSupport 2 MHz to 40 MHz crystal oscillator outsideSupport 32 kHz crystal oscillator outside for RTC to support self calibrationTwo timer groups, and every group includes two 64-bit general timer and one main system watchdogEquipped with second order accuracy RTC timerAdvanced specifications12-bit SAR ADC，more up to 18 accessesTwo 8-bit D/A converter10 touch sensorTemperature sensorFour SPI/ Two I2S/Two I2C / Three UARTOne Host SD / eMMC / SDIOOne Slave SDIO / SPIWith special-use DMA Ethernet MAC interface and support IEEE 1588CAN 2.0 /  IR (TX / RX)LED PWM as many as 16 accessesSafety systemSupport IEEE 802.11 includes WFA、WPA ／ WPA2 and WAPIFlash encrypted1024-bit OTP up to 768 bits availableEncrypted hardware accelerator:AESHASH (SHA-2)RSAECCRandom number generator (RNG)ApplicationsGeneral IoT sensor HubGeneral low cost IoT recorderVideo stream transmission of cameraOTT TV box／set top boxMusic playersnetwork music playeraudio media deviceWi-Fi toolsregistertools anti drop deviceWi-Fi audio recognition devicesEarphones micSmart plugFamily autoMesh networkIndustry wireless controlBaby monitorWearable electrical devicesWi-Fi position sensing deviceSafe ID labelsHealth and Medical treatmentsports monitor and anti-drop alarmtemperature recorder Development support:Support fast online programmed SDK firmwareOpen source tool chain based on GCC Size: 16mm x 24mm x 3mm.Download & External linksRelated Forum：
